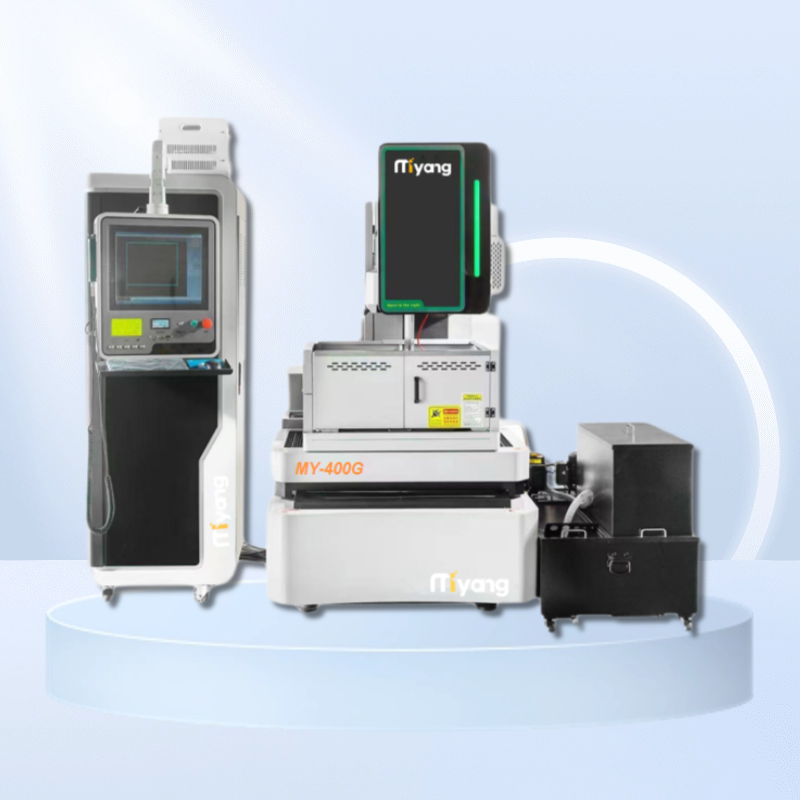

MY-G Series

1.Brand new 5-axis servo molybdenum wire medium-speed wire cut EDM machine
2.Using C-type mechanical structure design, the structure is more stable and does
not deform after long-term use.
3.Adopt the latest 10.1 AUTOCUT system.The servo motor adopts Panasonic servo motor THK ball screw and linear guide rail.The mechanical accuracy is guaranteed.

Production Workshop


未命名(1)(4) (1).jpg

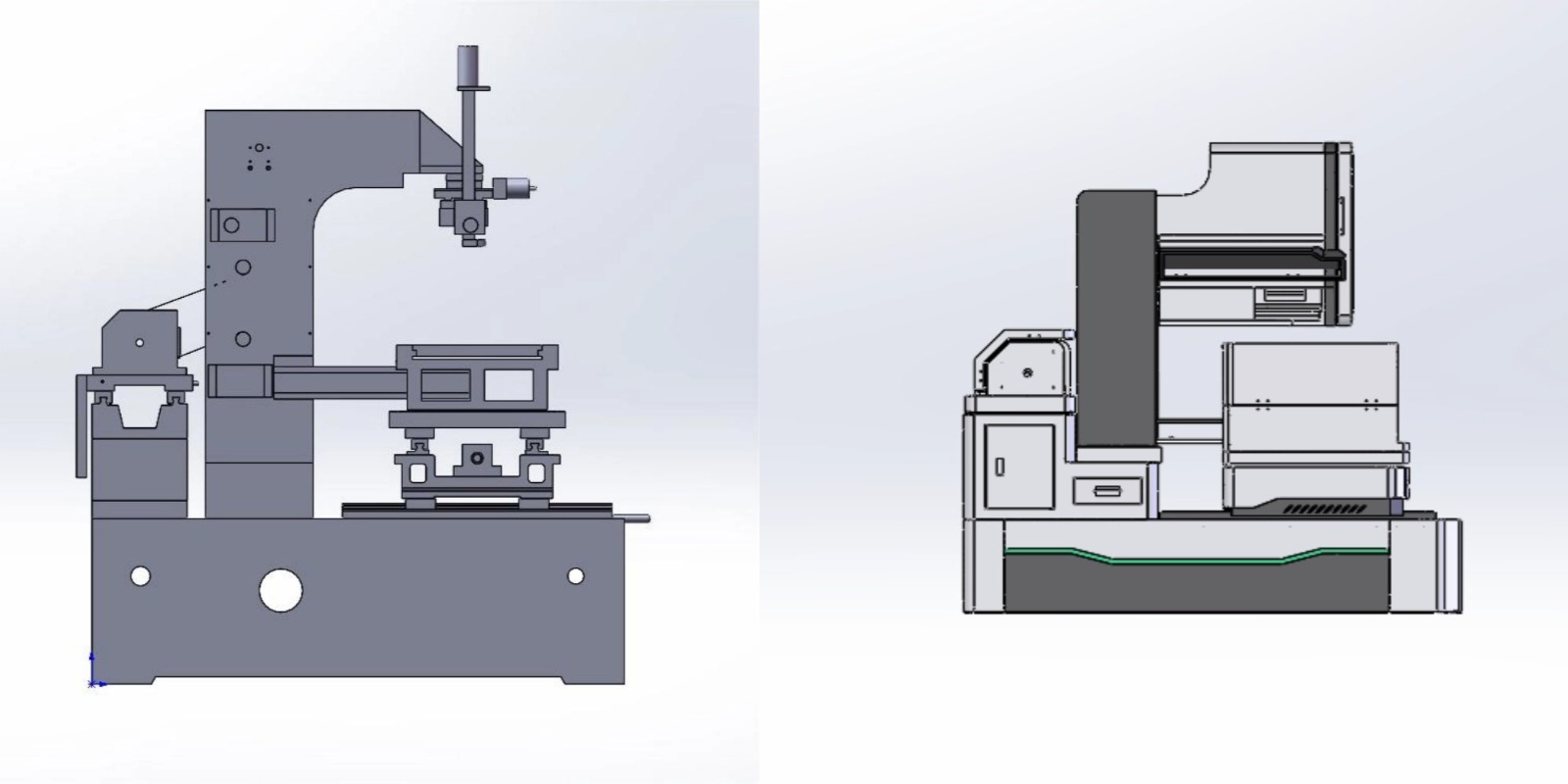

1.The mechanical structure and appearance are original designs, which have been rationalized,

improved and optimized.

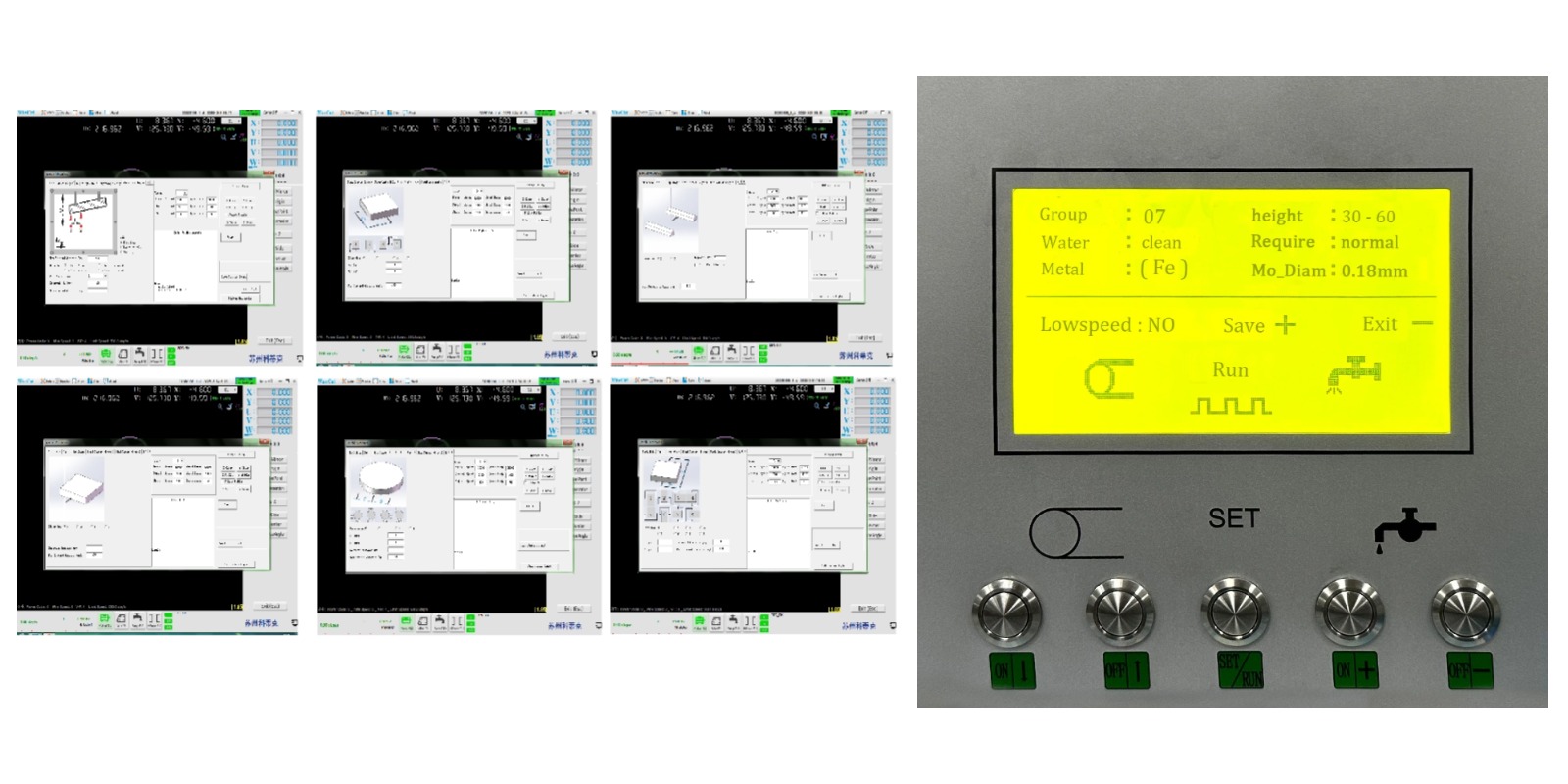

2.Latest system10.1 Autocut.Very powerful function, easy for operators to use

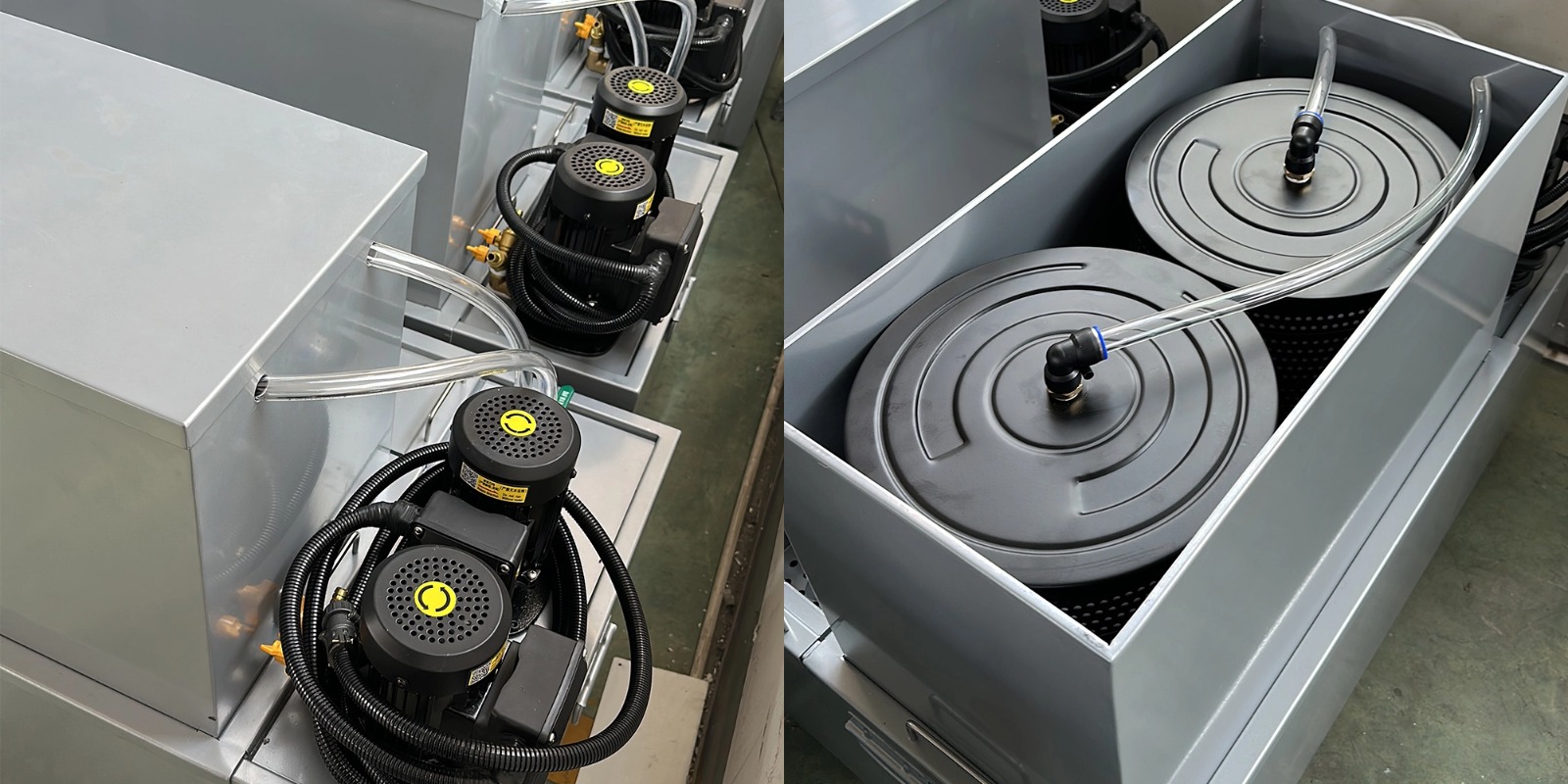

3.Double filter 150L water tank

Item	MY-400G		MY-500G
Worktable size(mm)	600*460		720*530
CNC axis travel(X×Y)	400*320		500*400
Max. cutting workpiece thickness(mm)	280		300
Max workpiece weight(kg)	300		500
X、Y、U、V Control motor	X/Y Japan Panasonic Servo Motor U/V Hybrid drive Motor	X/Y Japan Panasonic Servo Motor U/V Hybrid drive Motor
X、Y、U、V Double nut screw,linear guide rail	Japan THK	Japan THK
Z-axis control method	Electric lift(One click back to the origin)	Electric lift(One click back to the origin)
Max cutting taper	±10°/80mm(Optional ±15°/80mm)	±10°/80mm(Optional ±15°/80mm)
Wire electrode diameter(mm)	0.1~0.2mm(Standard φ0.18)	0.1~0.2mm(Standard φ0.18)
Cutting accuracy(mm)	≤±0.004 Φ20mm H=40mm (multiple cutting)	≤±0.004 Φ20mm H=40mm (multiple cutting)
Positioning accuracy	≤±0.003mm (L=500mm)	≤±0.003mm (L=500mm)
Surface roughness(μm)	Ra≤0.8	Ra≤0.8
Cutting efficiency(mm²/h)	8000-12000	8000-12000
Working Voltage(V)	Two-phase 220v/Three-phase 380v/415v 50Hz	Two-phase 220v/Three-phase 380v/415v 50Hz
Power consumption	≤3Kw	≤3Kw
Tank capacity(L)	150L	150L
Weight(kg)	≈1700		≈1900
Controlled axis	5-axises		5-axises
Control system	Autocut10.1		Autocut10.1
Machine dimension(mm)	≈1750x1100x1950		≈1900x1300x1950
Control cabinet size（mm）	≈1200x650x1850	≈1200x650x1850
Tank size（mm）	≈930x550x700	≈930x550x700
Filter type	3nd filtration	3nd filtration
Molybdenum wire tensioning device	√		√
Table waterproof cover	√		√
Aluminum Cutting Device	√		√

Question: Are you a manufacturer or a distributor?

Answer: We are manufacturers. Welcome to visit our factory.

Question: How to choose the machine I want?

Answer: First of all, please match the worktable stroke and cutting thickness according to the size of the workpiece to find the appropriate model.

Secondly please check whether the accuracy and roughness meet your requirements.

Question: The voltage in our country is three-phase 220V (or single-phase 220V, or other voltages), and the voltage of the machine is three-phase 380V. Can you change the voltage?

Answer: Yes. Please tell me the voltage you need and we will change it.

Question: If I purchase your machine, how can I obtain technical support?

Answer: We have detailed teaching videos. Even beginners can operate by watching the videos. Please search "Miyang Machine" on Facebook. Watch more videos!

Question: How is the after-sales service?

Answer: Damaged parts will be replaced free of charge during the warranty period. After the warranty period, they will be replaced at cost price.

If you have any questions we will quickly provide you with solutions by shooting videos or other means.
